Rocket Bunny Racing × Pandem | V2 LED DRL Daytime Running Lights Kit [WHITE / AMBER]

// ROCKET BUNNY RACING × PANDEM | V2 LED DRL DAYTIME RUNNING LIGHTS KIT [WHITE / AMBER]

This product is not DOT or E approved

Compatible with:  Rocket Bunny V2 Front Bumpers on: FR-S / BRZ , RX-7 , 350Z , GT-R , S15 & NSX

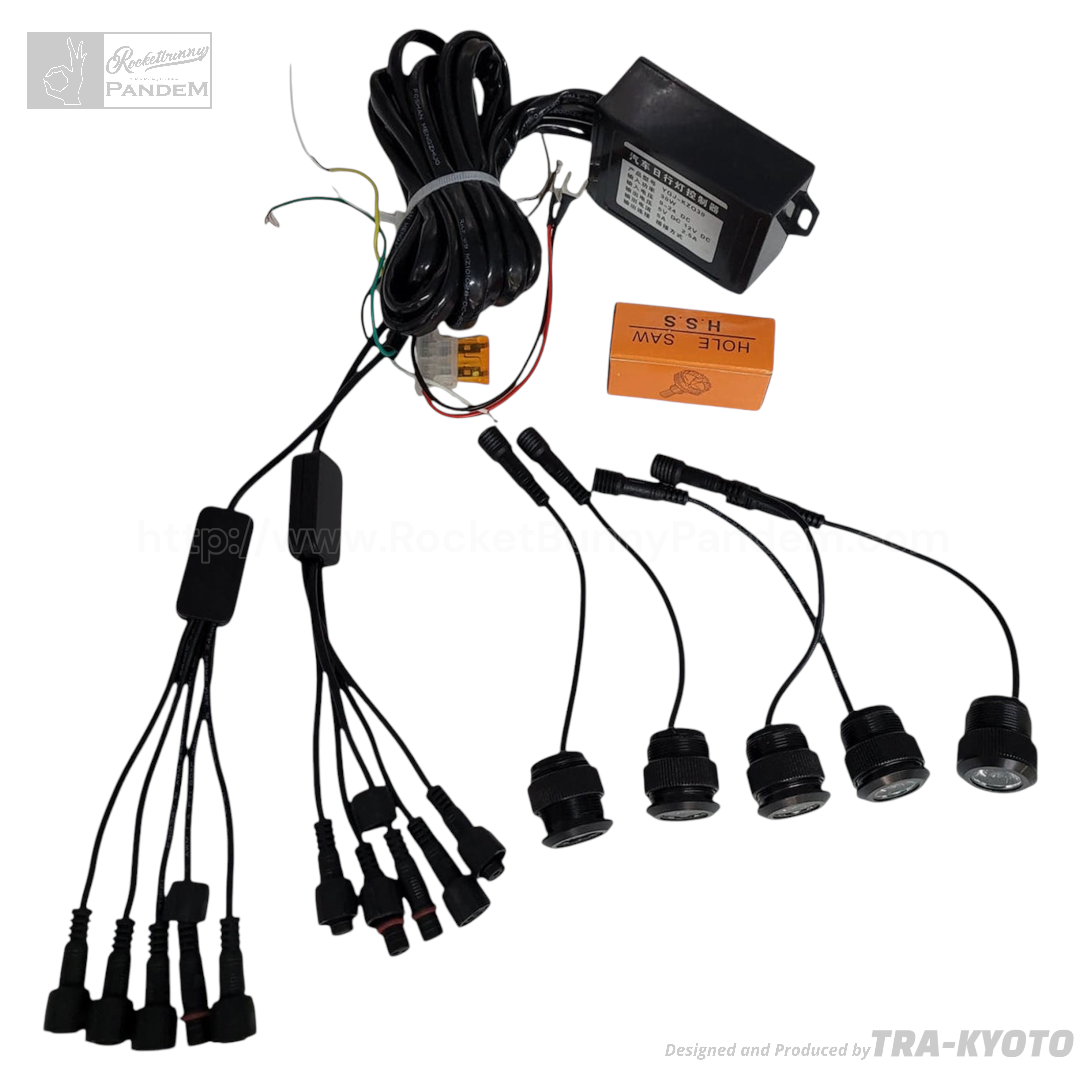

> Set of 10 "Quick Disconnect" dual colour [White LED Daytime Running Lights and Amber Turn Signal modes]

> Controller Module

Basic wiring diagram translation:

10 LED DRL Light Kit with controller

      Black (-)   -    Ground
      Red (+)     -    12V Power
      Yellow       -    12V ACC
      White        -    12V Positive Headlight
      Gray          -    12V to Flash Blinkers
      Brown       -    12V Blinker Set A LED
      Green       -    12V Blinker Set B LED

With ACC power at the ON position, the lights will glow WHITE
When turn signals are active, the LED's will flash AMBER
With parking or headlights on, the LED's will be show solid AMBER light
It will take approximately 20 seconds for the LED's to turn off after the ACC power is turned OFF
  *** Flash Feature: If you connect the Gray wire to positive terminal, the LED will flash WHITE and AMBER

      Input Voltage: DC 9V-24V
      Current Draw: 0.7A per unit
      Waterproof rating: IP66

  *** Ensure all LED's light up before installation

Detailed Wiring Instructions:

      1.)  Connect the main unit (control box) to the LED(s)
      2.)  Connect the Yellow wire to the Positive batter terminal and
            the Black wire to the Negative. - LED will light-up WHITE
     3.)  Connect the White wire to Positive battery terminal.
            - LED will light up AMBER
     4.)  Connect the Brown or Green wire to 12V source.
            - Each corresponding LED will light up AMBER
     5.)  If you disconnect the Yellow wire from the 12V source
            - LED will turn off after 20sec.
     6.)  If you connect the Gray wire to the 12V source while
           the LED is on - the LED will Flash.

DISCLAIMER: This kit may replace the front OEM turn signal lights with aftermarket DRL LED type lights, which can be wired to operate as driving lights and/or turn signals. However these lights are not DOT or E approved as this kit was originally developed for sales in Japan. It maybe unlawful to tamper, remove or replace DOT or E approved manufacturer installed lighting with non-approved lights for use on main roads Locally or Nationally within your region - Please check with your local transport office prior to purchase/use on main roads in your region. These DRL / signal lights are designed for use within off-road, competition or show purposes outside of Japan, and not for main road use.
